Automatic soil sample processor
You analyze the soils. The preparation of the samples influences the quality of the analyzes.
This is a tedious, sometimes lengthy manual operation that is of less interest to operators, than analyzes.
We are pleased to present the PrepSoil, automatic soil sample processor here.
It crushes clods, cleans pebbles without crushing them, homogenizes and sieves the most difficult samples in a minute.
It is versatile, adapts to all types of soil and can also be used to crush dried sludge and compost. With some adaptations, it can also process samples of non-dried soils.
It is robust, to withstand long-term intensive use and sometimes harsh operations.
It is safe for operators, who are safe to use. It is taken in hand in a few minutes. It complies with machine safety rules.

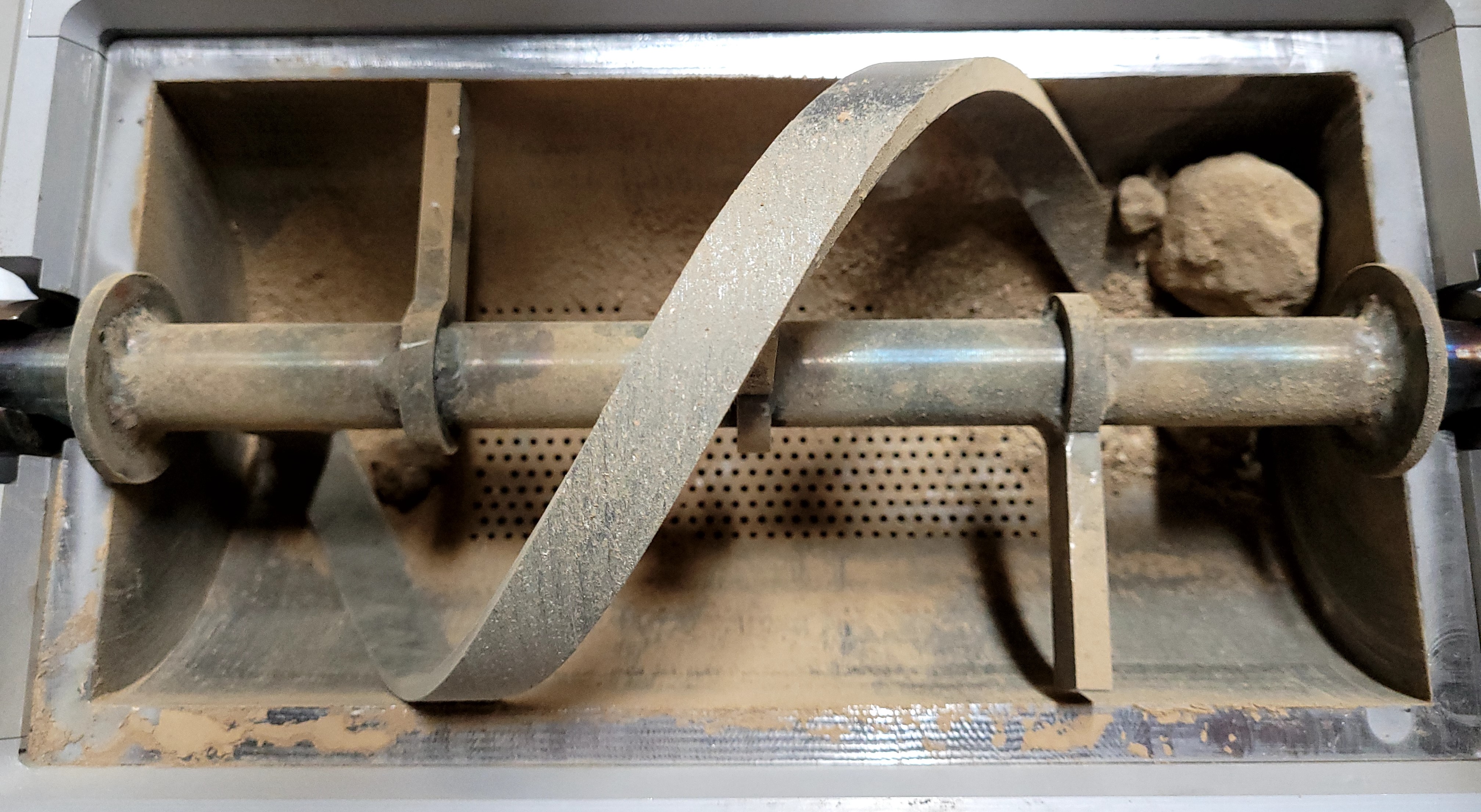

The pot and shaft assembly are removable, easy and quick to clean for easy preparation. Dust remains in the containers. The noise is bearable without hearing protection.
We developed PrepSoil with the help of specialists from a laboratory that analyzes numerous soil samples and has used it routinely for over 20 months.

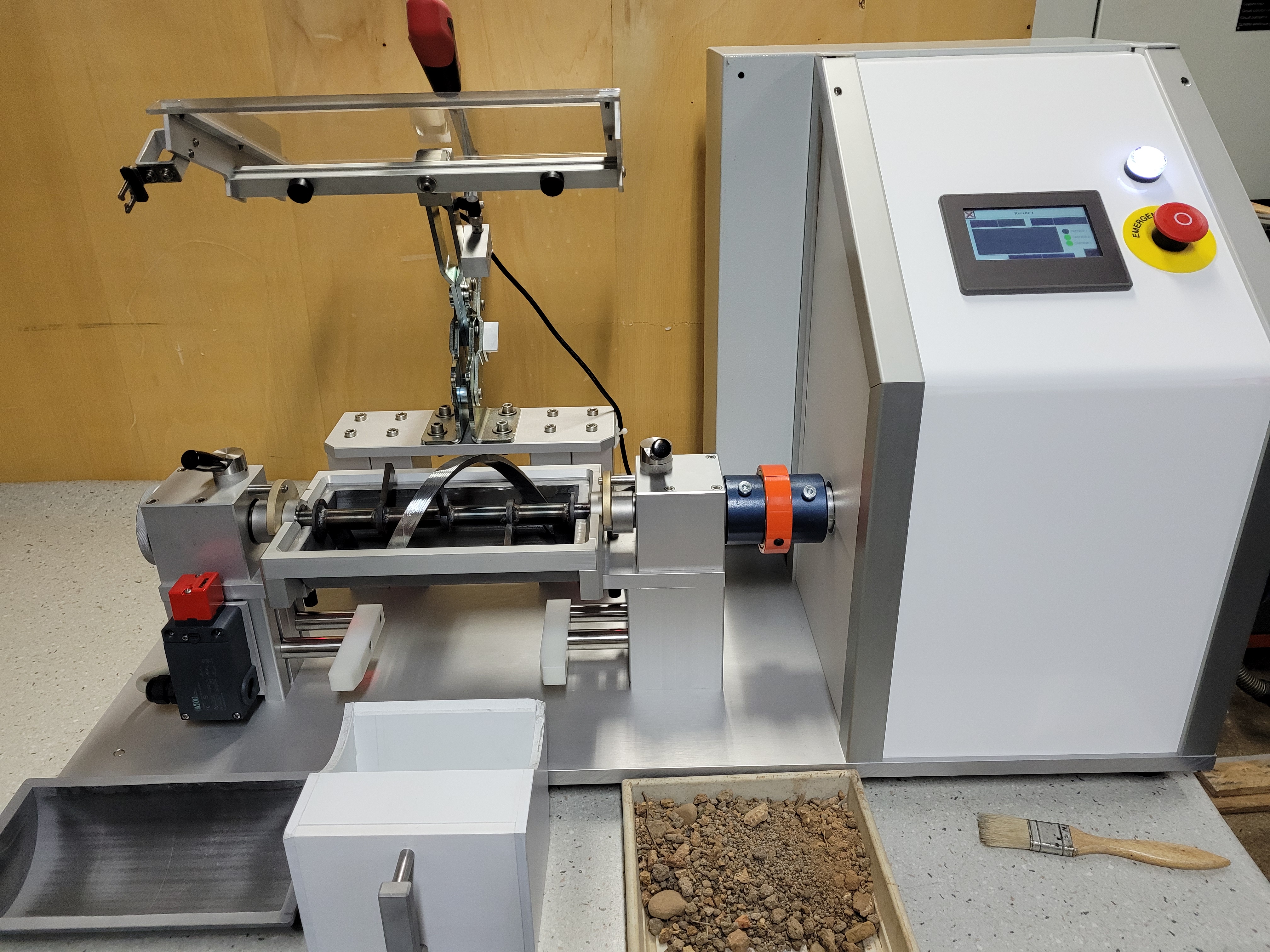

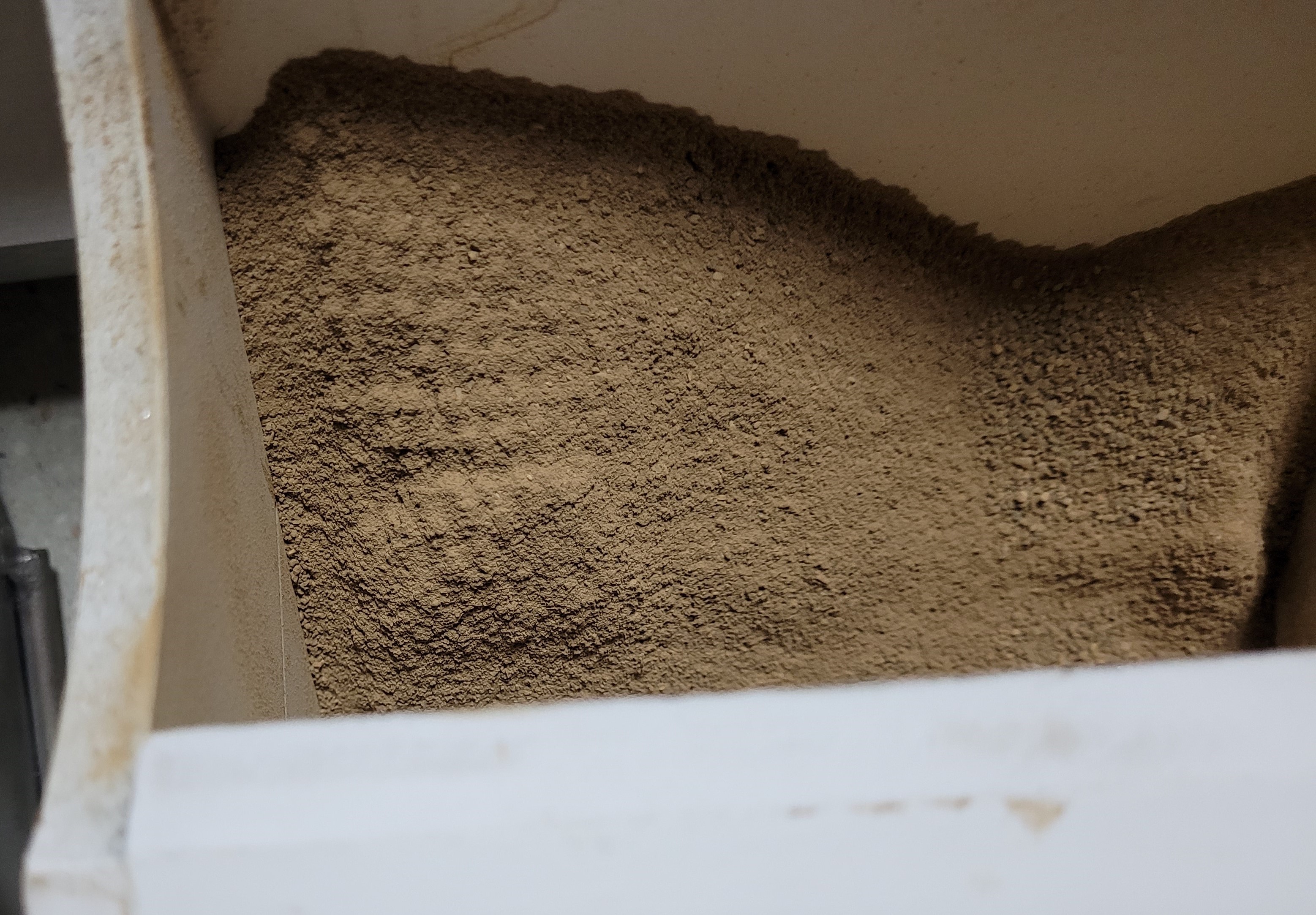

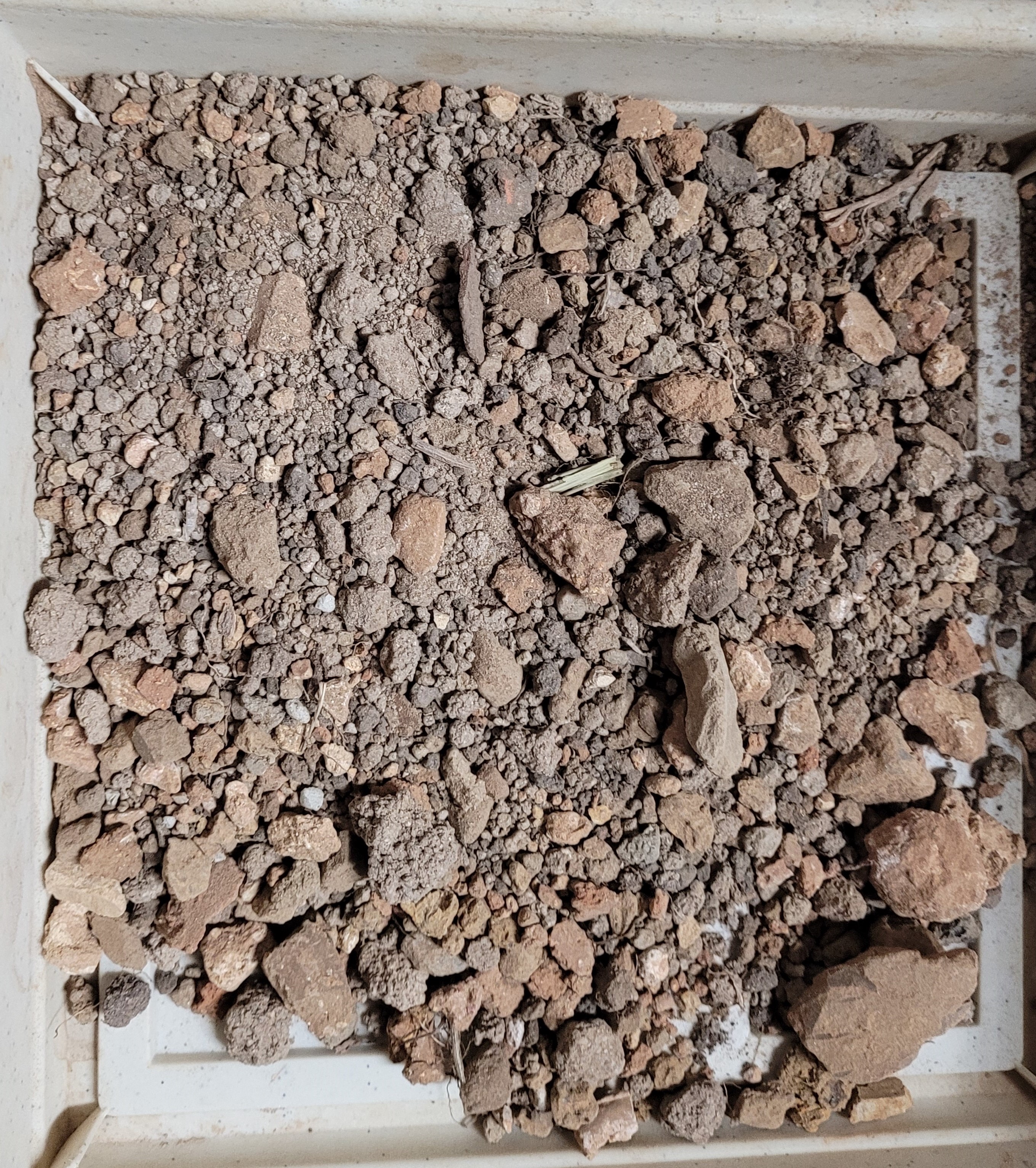

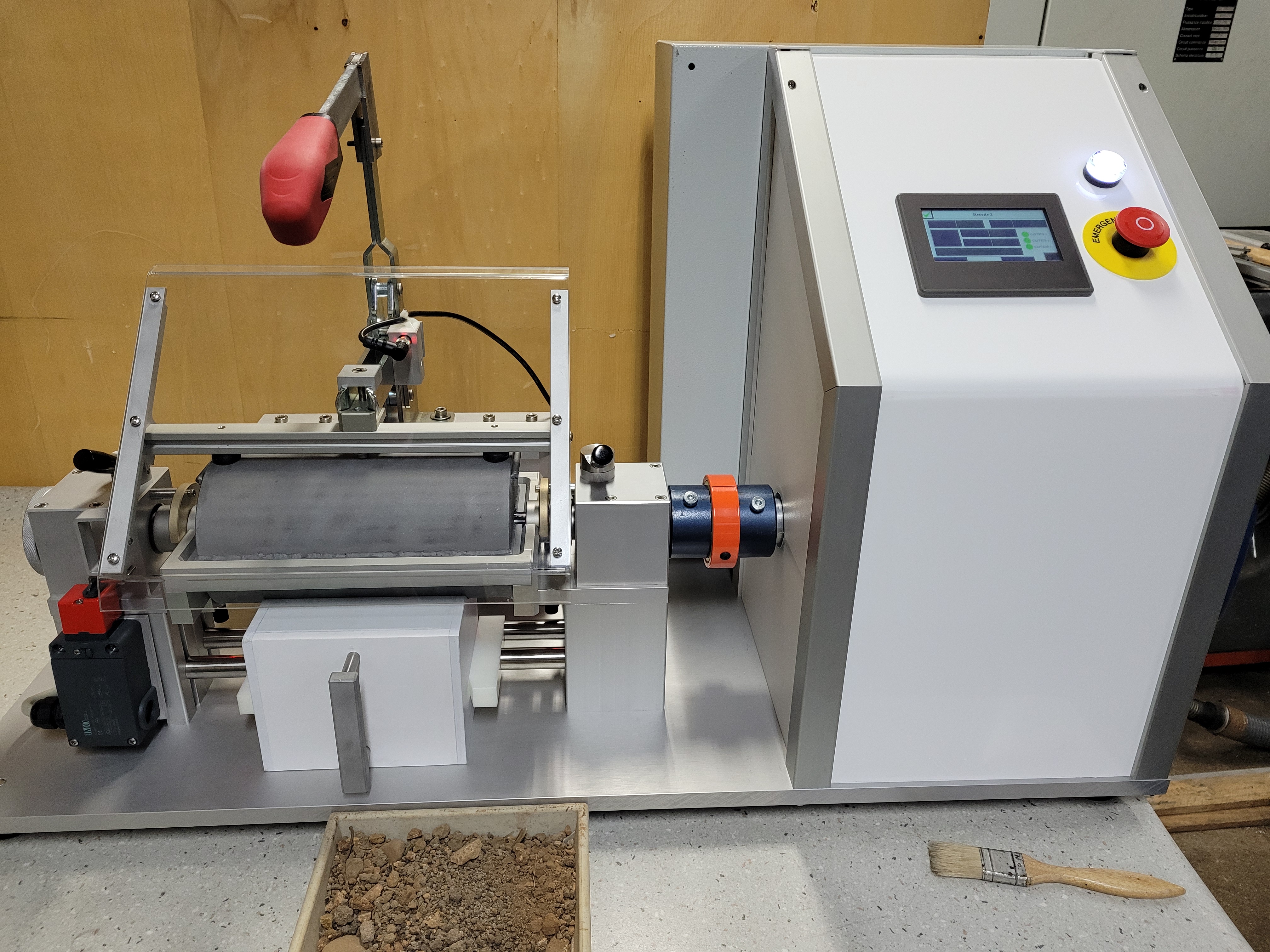

The pictures speak louder than a long speech. Below you will find the proofs in pictures.
A video showing how long it takes to treat a difficult soil sample can be supplied.
PrepSoil is controlled by a programmable logic controller. The operator interface passes through a touch screen. Nine sample processing protocols can be stored in memory. A treatment protocol has 3 parameters, to adapt it to the nature of the soil sample:PrepSoil is controlled by a programmable logic controller. The operator interface passes through a touch screen. Nine sample processing protocols can be stored in memory.
A treatment protocol has 3 parameters, to adapt it to the nature of the soil sample:
⦁ Axis rotation speed,
⦁ Axis rotation time in one direction and in the other,
⦁ Number of cycles of alternating rotations.
Power supply via socket 230V, 16ADimensions : 100 x 50 x 60cm (L x P x H)Weight : 93 kg.
We remain at your disposal to provide you with any useful information on this automatic soil sample processor.
